Guide to Plasma Surface Treatment and Corona Surface Treatment in Medical Device, Pharma, and Labware Manufacturing

Medical practitioners are increasingly utilizing plastics in their devices and instruments due to the material’s versatility, quick processing, light weight, bio-compatibility, sterility and price point. Plasma and corona surface treatment are an ideal fit for medical, pharmaceutical, and labware manufacturing. Once surface treated the value of inexpensive polymer parts greatly increases due to now becoming specialized, functionalized, engineered components. Plasma and corona surface treatment produce reliable, durable, and uniform results through electrical discharge that heighten energy on the surface of polymers and other substrates to increase their capacity for adhesion and bonding.

What Can Plasma Surface Treatments and Corona Surface Treatments

Note how the ink adheres in the center of the bottle where it was plasma treated with 3DT’s PlasmaDyne Pro.

 Achieve in Medical Device Manufacturing?

Medical device manufacturers use plasma and corona surface treatment for various reasons. First, surface modification improves adhesive, coating, and ink bonds with a substrate by chemically changing substrates from being hydrophobic to hydrophilic. Manufacturers utilize corona and plasma treatment to solve complex challenges, especially plastic material applications that present incompatibility issues for bonding. Other specialized applications include applying protective coatings that either draw or fend off fluids and improved cell adhesion in laboratory containers made from polycarbonate and polystyrene.

What Are Some Useful Applications for Plasma and Corona Treatment in the Medical Industry?

Within medical manufacturing, the range of uses for plastics is vast. As a result, corona and plasma technology is regularly used for improving the bonding power of ink, adhesives and cell culture growth. Surface treated items include syringes, tubing, pipettes, bottles, flasks, vials, multi-well plates, Eppendorf tubes, culture plates, and other polymer labware items manufactured for research, drug discovery, and diagnostics testing. Surface treatment is employed for all types of parts and components for medical devices and pharma packaging.

Plasma treatment can assist the bonding of dissimilar materials. This can involve bonding metal to plastic, silicon to glass, polymers to other polymers, biological content to microtiter plates, and even bonding to polytetrafluoroethylene (PTFE). Whether bonding metal to plastic, silicon to glass, polymers to other polymers or biological content to microtiter plates, corona and plasma can be used to promote adhesion.

Adhesion promotion is achieved by increasing the substrates surface-free energy creating a dramatic improvement in bonding. In some cases, up to a 50x increase in bond strength can be achieved.

What Are the Benefits of Using Plasma and Corona Surface Treatments?

Plasma and corona surface treatment generate numerous benefits for medical, pharmaceutical, and laboratory components. These treatments offer:

syringe, tubing, corona treated, printed

Surface treatment creates secure bonding of ink, coating, adhesive and more.

High-Quality Results

Businesses in these sectors all require reliable, high-quality products for critical applications, making plasma and corona treatment ideal. As these surface treatments ensure consistent and superior wettability, the resulting products will have greater capabilities for adhesion—even for the most challenging of plastic substrates—as well as overall product performance. The secure bonding with media such as ink, paint, and adhesives is an important benefit for medical devices, changing a two-dollar plastic part into a fifty-dollar component. 3DT specializes in developing these processes and systems for customer’s unique applications.

Speed

Both plasma and corona surface treatment are typically fast, usually taking little time at all, depending on the process and materials. Treating can take just seconds to complete, with the potential for treating up to 1,000 parts per hour. As an added benefit, these surface treatments do not necessitate primers, curing or drying; cutting those stages from the production timeline for greater time savings.

Uniformity

These processes are an excellent solution for products that need treating on the whole of their surface, even hard-to-reach nooks, crannies, and drill holes. As such, they are ideal for 3D components with complex configurations, providing consistent, reliable pretreatment. Processes utilize highly repeatable, recipe-based programming.

3DT’s MultiDyne with 2 treating heads treats a medical device placed on a spinning mandrel prior to printing.

Cost-Effectiveness

Plasma and corona surface treatments have opened up additional opportunities for medical manufacturers. To start, the speed of these treatments plays a part in increased savings. They can also reduce operating costs by allowing companies to adopt the use of alternative materials that are less expensive than typical base substrates, as well as chemicals, primers, and adhesives. This also leads to less scrap and waste generated which equates to greater savings as well.

Environmental Friendliness

Surface treatment improves the adhesion of environmentally-friendly, solvent-free, water-based primers, adhesives, and inks, eliminating the use of chemical baths and primers.  Plasma surface treatment, unlike chemical processes such as priming or etching, are clean processes that do not produce environmentally harmful waste. Instead, they give off minor amounts of non-hazardous gasses only. Corona processes generate ozone, but using an ozone filter eliminates the issue. Additionally, corona and plasma do not use an open flame, and are much safer for operators.

What Medical Devices Are Treated with Plasma Surface Treatment or Corona Surface Treatment?

3DT’s FlexiDyne Pro quickly corona treats polystyrene labware for improved cell culture growth.

Plasma and corona surface treatments are applicable for:

  • Ampules, vials
  • Catheter tubing
  • Implants
  • Insulin pens
  • Lenses
  • Medication bottles
  • Needle hubs
  • Ostomy bags
  • Petri dishes
  • Labware: flasks, multi-well plates
  • Surgical instruments
  • Syringes

3DT is Your Source for Corona & Plasma Technology

Plasma and corona surface treatment are vital in healthcare manufacturing for providing effective, reliable adhesion and product performance. As a leading manufacturer in surface treatment, 3DT LLC provides clients with innovative, high-performance bonding solutions for a wide variety of substrates from plastics and rubber to glass and metal. We offer both standard and custom-engineered systems for greater application versatility. Learn more about our product line here. Our team can incorporate 3DT’s systems into new or existing production lines. For more information on our capabilities and how our surface treatment technology can support your operations contact us today at sales@3DTLLC.com or call 1-262-253-6700.



How Surface Treatment Functionalizes & Activates Difficult Bonding Surfaces

Many secondary processes prior to decorating and bonding require strong adhesion to be successful. However, certain substrates have insufficient surface energy for creating the required bond strength. To bond these types of challenging materials, surface treatment such as plasma or corona treatment significantly improve adhesion. This article will discuss some of the most common bonding challenges and outline how surface treatment overcomes these difficulties.

What Is the Purpose of Surface Treatment?

Surface treatment is used to improve bonding or “functionalize” the surface of a substrate. This useful technology modifies the surface of a material in a way that allows for strong bonds to be formed between the substrate and a label, a coating, print, or adhesive. Surface treatment, such as atmospheric plasma (also called in air plasma) and corona treatment work by improving surface tension. Numerous bonding problems are successfully solved through surface treatment, even those involving elastomeric or polymeric materials.

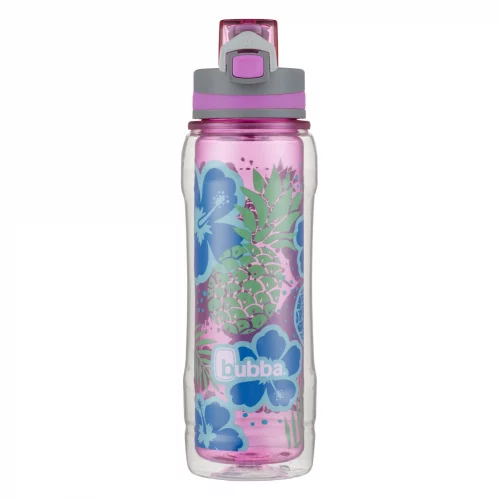

printed sport bottle

There are significant costs associated with bonding failure, including poor product field performance, excess scrap and rework, production inefficiencies, and increased quality control. Surface treatment solves virtually any bonding challenge, even when using the most difficult-to-bond materials.

Corona and plasma surface treatment prepare materials for improved adhesion by:

  • Raising the material’s surface tension or wettability by altering the molecular properties of the surface
  • Improving the bond strength between the applied media and the material
  • Plasma treatment provides mechanical etching and micro-cleaning, as well as elevating surface tension

Bonding Items With More Than One Type of Material

The power of surface treatment

Note how the ink on the left side of the corona treated polystyrene tray fully bonds with the material, but beads up on the non treated right side.

Materials that feature low surface energies, such as those between 20 and 40 dynes, are notoriously difficult to bond. In plastics, this includes materials such as polytetrafluoroethylene (PTFE), polypropylene, and polyethylene, polystyrene, among others. Composite materials are also challenging in bonding applications because the different materials they contain typically feature differing surface energies.

Achieving workable wettability of a substrate requires the surface energy of the substrate to exceed the surface tension of the media being applied. Using surface treatment to increase the substrate’s surface tension causes media to evenly flow and adhere to the material’s surface for highly improved bonding capabilities.

How to Activate the Surfaces of Difficult-to-Bond Materials

When activating the surface of challenging materials, the first consideration should be the surface energy of the substrate. The surface energy will determine whether or not media will successfully bond with the material. Wettability is another prerequisite of successful adhesion. The term wettability describes the ability a liquid has to maintain contact with a type of media. It is influenced by intermolecular interactions that are altered through corona and plasma surface treatments.

Atmospheric plasma is created by combining reactive gas molecules and an electric field. This system uses one or more high voltage electrodes, which charge the surrounding blown gas molecules, resulting in a highly ionized field that is forced onto the targeted surface. This ionized air stream reacts with the substrate and breaks the existing hydrogen bonds by introducing oxygen which recreates the chemical properties of the surface. This intensified reaction causes the material to wet out and accept media, as well as etches and micro-cleans the surface.

3DT’s plasma treatment is not confined to a chamber, but performed in fast, inline production lines. What’s more, plasma is environmentally friendly and potential-free, meaning it can be used on or near metal parts and wiring.

Corona treatment also improves a material’s surface tension to solve bonding problems. It is probably the most common and economical type of surface treatment. In contrast to plasma treatment, corona relies on two electrodes and an isolator to create a cloud of ionized air, corona discharge, that breaks molecular bonds on the surface of a material. Surface oxidation occurs, creating covalent bonds resulting in enhanced wettability and adhesion capabilities.

3DT works closely with its customers in selecting the most appropriate surface treatment method for their application. Factors such as the materials and media involved, the geometry, line speed, and required bonding results are considered. See our blog article What is the Process for Purchasing a Surface Treatment System from 3DT? for more information.

PolyDyne Pro Corona treatment system

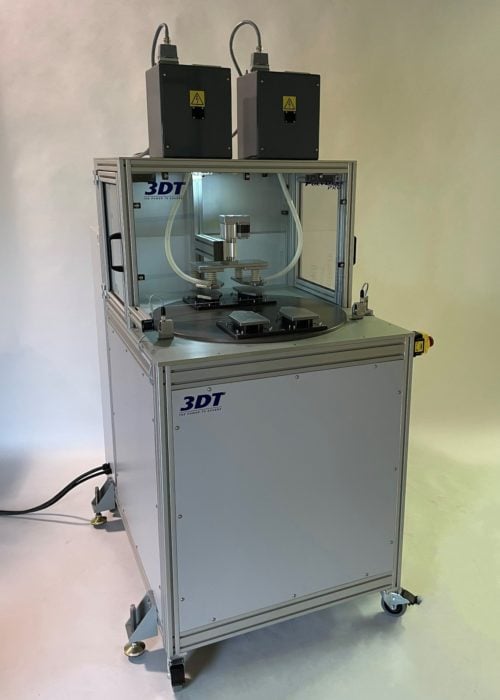

Custom PolyDyne Pro corona treatment system with indexing table for the treatment of labware flasks.

Surface Treatments for Powerful Adhesion from 3DT

Working with materials that are resistant to printing and bonding requires surface treatment processes that improve surface tension and eliminate bonding problems. 3DT manufactures a comprehensive line of surface treatment systems to improve bonding for numerous applications. Our solutions raise surface energy and improve bonding on even the most challenging substrates.

With over 30 years of specialized experience, 3DT provides the most innovative corona and plasma treatment systems. Our equipment addresses the needs of diverse industries and can be used as stand-alone stations or incorporated into a production line. We specialize in process development for demanding applications. Learn more by visiting our corona and plasma treatment process page, or get started on your solution by requesting a quote today.

8 Facts About Plasma Surface Treatment

3DT has manufactured corona and plasma treatment systems for over 30 years. Our solutions enhance the surface characteristics in materials and components, including adhesion, bond strength, cell culture growth, cleanliness, and wettability. We offer a broad range of standard and custom options in our PlasmaDyne Pro series for use in customer facilities that accommodate a wide number of applications and substrates. 3DT’s systems can be used for plasma treatment for plastics, glass, foam, metal, and more.

What You Should Know About Plasma Treated Surfaces  eight interesting facts about plasma treatment that address why they are used, how they are used, and more.

#1 Plasma: The 4th state of matter.

lightning is plasma

Everyone is familiar with the three states of matter (solid, liquid, gas), but the fourth state is one that is less well known- plasma energy. Yet, everyone is familiar with lightning seen on a summer evening. This powerful energy is plasma! Essentially, plasma is an ionized gas consisting of approximately equal numbers of positively and negatively charged particles. There are two general forms of plasma: high-temperature plasmas that are found in stars and in fusion reactors; and low-temperature versions used in surface treatment, neon and fluorescent lighting, plasma TVs and semiconductor manufacturing.

#2 Plasma surface treatment is powerful enough to break hydrogen bonds.

Plasma surface treatment is created by combining reactive gas molecules and an electric field. This method uses one or more high voltage electrodes which charge the surrounding blown gas molecules, resulting in a highly ionized field that is forced onto the targeted surface. This highly ionized air stream creates a thermal property that reacts with the substrate and breaks the existing hydrogen bonds by introducing oxygen which recreates the chemical properties of the surface. The plasma process causes a molecular reaction on the substrate. It also creates finely etched and micro-cleaned surfaces resulting in better wettability, stronger bonding traits. See a video of PlasmaDyne Pro treating bottles in a trial here.

#3 Plasma surface treatment improves adhesion.

Plasma surface treatment modifies the surface of a material on a molecular level, enabling it to bond more readily with adhesives, ink, paint, and other media. It is effective on a variety of materials; even difficult-to-bond materials can achieve better adhesion without experiencing surface damage.

#4 Plasma treatment improves adhesion on a wide variety of materials.

Bonding problems are pervasive throughout manufacturing, especially the plastics industry. Manufacturing and decoration often include joining plastic-to-plastic, plastic-to-metal, plastic-to-composite and more. But, plastics and many other materials possess low surface energy or “wettability” and therefore, require plasma pretreatment.

Plasma treatment is a non-invasive, non-heat-based process that can be used on virtually any material. It encourages molecular bonding on surfaces, micro-cleans contaminants, and causes fine etching. Plasma treatment facilitates the bonding of adhesive,  ink, paint, and other media to a range of substrates. These materials benefit from plasma treatment:

  • Plastics
  • Rubber and Elastomers
  • Engineering Polymers
  • Composites
  • Glass
  • Metals and alloys
  • Ceramics

#5 Many industries rely on plasma surface treatment for their products.

Plasma surface treatment is used to enhance the wettability, adhesion, and cleanliness of materials within numerous industries, including:

  • Aerospace: The aerospace industry uses plasma surface treatment on critical surfaces to enhance adhesive bonding.
  • Automotive and Transport: The automotive and transportation industries utilize plasma treatment to improve adhesive bonding between components and enhance paint and coating adhesion to a variety of substrates.
  • Consumer Goods: Plasma treatments enhance the functional and aesthetic quality of various consumer goods.
  • Electronics: Plasma treatments protect sensitive components within potting. Plasma treatment is nearly potential-free allowing plastics with embedded circuitry to be safely surface treated.
  • Medical and Biotech: Plasma treatment is used for raising surface energy and micro-cleaning surfaces to ensure optimal bonding between components and devices.
  • Packaging: Packaging materials, such as plastic films, cardboard, and plastics, are often plasma treated to promote adhesive and ink application during printing and labeling operations.
  • Printing: Printing operations integrate plasma treatments to enhance surface wettability to ensure precise, vivid, and long-lasting ink adhesion.

#6 Plasma surface treatment is versatile.

Due to its exceptional versatility, plasma treatment has become critical for a wide range of applications, such as:

  • Painting, coating, and printing for plastic products
  • Enhancing coating adhesion for polymer extrusions
  • Printing, painting, and coating rubber profiles
  • Cleaning the surface of aluminum and other metals
  • Improving adhesion of glue on cardboard products
  • Treating silicone foam to enhance adhesive application
  • Improving adhesion of paint and ink to composite materials

#7 The advantages of plasma treatment include speed, cost-efficiency, eco-friendliness, and more.

Plasma treatment offers a number of advantages over other treatment options. For example:

  • It is potential-free: Atmospheric plasma is potential-free, so the treatment process can be used in conductive, semi-conductive, and non-conductive applications.
  • It is effective for surface cleaning: Plasma can be used for micro-cleaning operations, which removes surface impurities and contaminants.
  • It is environmentally friendly: Plasma cleans and enhances material surfaces without the use of harmful chemicals or ozone emission.
  • It is cost-efficient: Plasma treatment reduces process time by improving bonding, increasing surface cleanliness and wettability. You spend less time processing the substrate and use less ink, paint, glue, or coating due to optimal adhesion. Less waste and scrap are created, plus our plasma systems have low energy costs.

#8 3DT is your go-to source for all plasma surface treatment products!Plasma Dyne Pro Cut Out 4 MB 4455AP

3DT is a leading provider of plasma surface treatment solutions. Equipped with more than three decades of experience, our experts will thoroughly discuss your application with you and help to select one of our standard PlasmaDye Pro systems or a custom-engineered PlasmaDyne Pro based on the requirements of your application. PlasmaDyne Pro can be customized for nearly any 3D or flat surface. We also offer product handling and automation.

Learn More About Plasma Surface Treatment From 3DT

Plasma surface treatment improves the surface properties of materials, which is why they are used in many industries and applications. To learn more ask the experts at 3DT. As an experienced manufacturer of plasma surface treatment systems, we can address any questions you may have about the process and our systems. If you need a plasma system for your facility, we’ve got you covered.

To learn more about our products and how they can benefit your components and materials, check out our PlasmaDyne Pro or contact us today.
