PlasmaDyne Pro's Numerous Capabilities
Activate Surfaces for a Long-lasting Bond
Improve Your Adhesion, Process and Profitability
3DT’s PlasmaDyne Pro generates atmospheric plasma to increase the surface energy of a wide range of materials, enhancing the adhesion of ink, paint, and adhesives before decoration, coating, or part assembly. Unlike slow, labor-intensive batch processing in a vacuum chamber, PlasmaDyne Pro enables high-volume, in-line production.
PlasmaDyne Pro effectively functionalizes plastics, rubber, glass, metals, paperboard, and composites. It also excels at surface cleaning, removing impurities, contaminants, residues, and organic compounds.
3DT’s plasma system generates a virtually voltage-free stream of plasma energy, ideal for cleaning metal surfaces by eliminating lubricants, coolants, and release agents. Once treated with the fast and efficient PlasmaDyne Pro, surfaces are optimized and functionalized for superior performance.
Learn more below.
PlasmaDyne Pro’s Superior Features and Benefits
PlasmaDyne Pro - Powerful, Smart, Versatile
PlasmaDyne Pro – Powerful, Smart, Versatile
PlasmaDyne Pro is engineered with the latest components, circuitry, software, and our proven plasma technology to deliver superior surface energy enhancement and long-lasting bonds. Designed with adjustable power levels and multiple treating modes, it provides unmatched versatility for treating various substrates and applications—all in one system.
Key Features & Benefits
✔ Adjustable Power Levels – Up to 500W to achieve the desired treatment intensity. Increase power for resistant substrates, or reduce it for delicate materials.

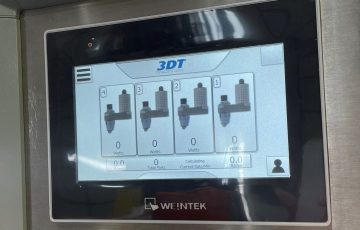

✔ Intuitive Color Touch Display – Monitors all system parameters, including troubleshooting and a fault log for streamlined diagnostics.
✔ Modular Power Supply – Quick and easy treating head changes ensure minimal downtime and keep production running.
✔ Active Power Correction – Maximizes efficiency while minimizing operating costs.
✔ Compact Design – Easily integrates into existing production lines.
✔ Advanced Microprocessor Circuitry – State-of-the-art, solid-state technology delivers unprecedented precision and control.
✔ Independent Treating Heads – Programmed to operate separately, allowing flexibility for multiple applications.
✔ Standard Self-Contained Units – Available with 1, 2, 4, or up to 20 treating heads, each housed in a durable, powder-coated steel cabinet with an integrated control system, front panel, remote connector, high-voltage transformer(s), and air supply system.
✔ Fully Customizable – Configure up to 20 treating heads to meet your specific surface treatment needs.
✔ Flexible Treatment Width – Choose from:
- Stationary head treating width: 12mm
- Rotating head treating width: 40mm and 50mm, treatment areas can be wider with multiple heads.
✔ Self-Contained Air Supply – Uses a DC, low-voltage, self-monitoring air blower, eliminating contamination risks from compressed air.
✔ Plasma Treatment Level Alarm – Ensures consistent quality results; the system automatically stops if treatment is compromised.
PlasmaDyne Pro’s thoughtful design and engineering make it the finest atmospheric system on the market. See the section below on Custom Systems to learn how PlasmaDyne Pro can be uniquely customized for your application.
PlasmaDyne Pro Improves Your Bottom Line
PlasmaDyne Pro is Easy-to-use, Cost-effective, Dependable and Safe
PlasmaDyne Pro’s sophisticated features ensure high production, low maintenance, quick changeovers, and uniform part treatment.
- Easy integration and operation – Requires minimal space, integrates seamlessly with robotic arms or reciprocators, and offers intuitive functionality for end-to-end productivity.
- Reduced downtime and maintenance – A streamlined design with state-of-the-art components ensures smooth operation and extends system longevity.
- Quick application changes – Features easy programming and profile adjustments to minimize downtime.
- Environmentally friendly – Eliminates the need for toxic primers and solvents, reducing VOC emissions. Supports the use of water-borne or UV technology.
- Workplace safe – Produces no ozone and eliminates the risk of high-voltage shocks and hazards of open flame or chemical treatments.
- Durable and compact – All-metal treating heads are highly durable and designed for efficiency in space-constrained environments.
- Flexible system integration – Requires minimal space and easily integrates into single or multiple orifice lines.
Long-lasting PlasmaDyne
3DT’s customers have come to appreciate PlasmaDyne for its highly effective surface treatment, flexibility in adapting to varied applications, thoughtful engineering and durability. In fact, there are numerous systems in the field with more than 25,000 hours of operation and they are still running strong.
Fill out the form below to get started on solving your adhesion challenges with PlasmaDyne Pro.
Applications
Polymers
PlasmaDyne Pro Produces Powerful Bonding on Polymers
Bonding problems are pervasive throughout manufacturing, especially in the plastics industry. Plastic is often the material of choice due to its many benefits. However, plastic have low surface energy or “wettability,” making surface treatment necessary for optimal performance.
3DT’s plasma treatment is a non-invasive, non-heat-based process that can be used on virtually any material, especially plastics. Plasma treatment produces molecular bonding on surfaces, which vastly improves their adhesion properties. Common manufacturing and decoration applications may include: printing processes, adhesion processes and the joining of similar and dissimilar materials.
PlasmaDyne Pro is fully customizable for numerous applications, even those requiring high surface treatment (dyne) levels, high-speed production lines and fast throughput operations. Give us a call at 262-253-6700 to discuss your application.
3DT Creates the Power to Adhere on Plastics – As demonstrated in the image to the left, the red dyne ink adheres only to the center of the polymer bottle, which was treated with PlasmaDyne Pro, while the untreated areas resist the ink.
Glass
PlasmaDyne Pro + Glass = Success
The secure bonding of inks, adhesives, and coatings is essential to your product’s quality, performance, and aesthetics. If adhesion challenges are affecting your glass-related production, 3DT may have the solution.
3DT’s atmospheric plasma surface treatment system, PlasmaDyne Pro improves surface energy and bonding properties for a wide range of applications. Whether your process involves printing, bonding, coating, laminating, or decorating, 3DT provides the expertise and equipment to functionalize glass for superior adhesion and long-term success.
Key Applications for Glass Treatment:
- Glass lighting – Improves the bonding of adhesives for gaskets.
- Glass touch displays – Improves the adhesion of print and coatings.
- Glass windows – Strengthens seal adhesion.
- Eyeglass lenses – Enhances bonding of coatings.
Fill out the RFQ form below, and let’s start solving your adhesion challenges today!

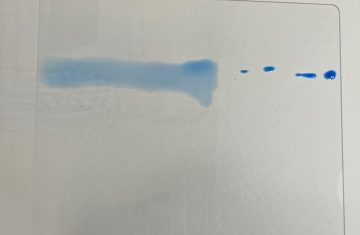

3DT Creates the Power to Adhere on Glass- As shown in the image to the left, the dyne ink spreads and clings to the plasma-treated section of the glass sheet, demonstrating improved adhesion. In contrast, the untreated area repels the ink, causing it to bead up.
Metal
3DT's Plasma System Improves Adhesion on Metal
The secure bonding of inks, adhesives, and coatings is essential to your product’s quality and performance. If you’re facing challenges with bonding to metal, 3DT may have the solution.
Surface treatment of metal is now possible with 3DT’s PlasmaDyne Pro. This advanced system generates a virtually voltage-free stream of plasma energy, effectively cleaning stainless steel, aluminum, and various alloys. By removing lubricants, coolants, and release agents commonly used in metal production, PlasmaDyne Pro optimizes surfaces for improved adhesion in processes such as gluing, painting, laser welding, and over-molding. Once cleaned with the effective and fast PlasmaDyne Pro, surfaces are optimized and functionalized.
Plasma Technology for Electronics & Flexible Circuits
Plasma treatment is also highly effective for embedded electronics and flexible circuits. The non-conductive PlasmaDyne Pro enhances the wettability of plastic film overlays without damaging delicate circuitry. Additionally, it can be used to treat bare circuit boards, improving solder mask adhesion and other protective layers
Customizable for Your Application
PlasmaDyne Pro is customizable for your unique application. Styles and the number of treating heads, line speed, automation and product handling are just some of the ways 3DT can custom-engineer a turn-key system for you. Give us a call to discuss your application.
3DT Creates the Power to Adhere on Metal- As shown in the image to the left, only the center of this stainless steel sports bottle was plasma treated. The dyne ink spreads evenly in the treated area, demonstrating superior adhesion, while the untreated surface repels the ink, causing it to bead up.
PlasmaDyne Pro's Models and Customization
Treating Head Options
PlasmaDyne Pro Treating Heads: Superior Craftsmanship for Maximum Performance
PlasmaDyne Pro treating heads are built with 3DT’s superior craftsmanship, ensuring exceptional durability and performance. The system is available with two distinct treating head options to meet various application needs.

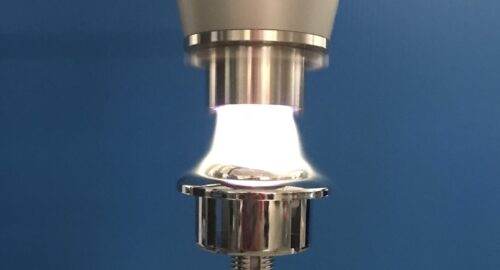

- Rotating Treating Head – Spins to cover a wider treatment area of 15 – 40mm with atmospheric plasma, effectively functionalizing the surface. When multiple treating heads are positioned together, the treatment width becomes virtually limitless.

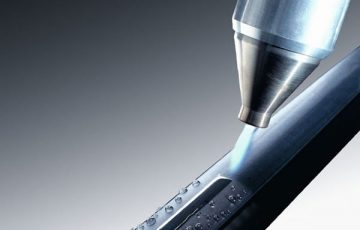

- Stationary Treating Head – Produces a narrow plasma discharge, ideal for treating complex part configurations at high speeds. It treats a width of 10mm – 12mm and integrates seamlessly with robotic arms for precision applications.
Unlike traditional ceramic treating heads, which lack flexibility, mechanical strength, and require frequent maintenance, PlasmaDyne Pro treating heads are compact, all-metal, and highly durable.
They are securely connected to the transformer via flexible air and high-voltage (HV) hoses, ensuring reliable operation with minimal upkeep.
Options for Custom Systems
Customizable Solutions with 3DT’s PlasmaDyne Pro
At 3DT, all our systems, including PlasmaDyne Pro, are fully customizable to meet unique application requirements. We collaborate closely with customers to develop optimal surface treatment solutions, guiding you from application development and design to engineering and manufacturing.
We offer a wide range of automation and material handling options for both inline and manual operations. Customization can include:
- Types and number of treating heads
- Conveyors and mandrels
- Linear actuators and robotics
- Part sensing and feeding systems
- Other tailored solutions to optimize performance
Our experienced team will engineer a system that meets your specific production needs, ensuring efficiency, precision, and seamless integration. Let’s get started! Fill out the form below or give us a call!
Systems for Smart Manufacturing
3DT’s New Plasma Treatment System – Ethernet I/P Ready for Next Gen Plasma Treatment
PlasmaDyne Pro 100: Advanced Plasma Treatment for Smart Manufacturing
The PlasmaDyne Pro 100 and 200 are the latest innovations in our proven PlasmaDyne series, built on our powerful, time-tested plasma technology. Fully upgraded for Smart Manufacturing, it features automation and interface devices for real-time data collection and treatment adjustments. Additionally, these systems are now available as a standard product in our inventory, ensuring quick production and shipping.
Enhanced Monitoring & Performance
PlasmaDyne Pro 100 and 200 are designed with advanced features to monitor performance and preserve production data. Its updated control system:
- Continuously monitors generator parameters
- Supports remote data collection via Ethernet I/P
- Includes a discrete I/O connector for precise system control and monitoring
Optimized Plasma Treatment for Superior Adhesion
PlasmaDyne Pro 100 and 200 generate atmospheric plasma, significantly improving the bonding of ink, paint, adhesives, and coatings on low-surface-energy materials. It also etches and micro-cleans surfaces, functionalizing them for superior adhesion. Compatible materials include: plastics, rubber, glass, composites, metal, paperboard.
By increasing surface energy, PlasmaDyne Pro enhances production efficiency, enabling faster throughput, higher-quality products, and reduced waste.
Versatile Treating Head Options & Easy Integration
Sold with one or two treating heads, the new PlasmaDyne Pro is available in two styles to suit different applications:
- Rotating Head – Treats a wide area of 15 – 40mm
- Stationary Head – Treats a narrow area of 10 – 12mm
This system can function as a stand-alone unit or be seamlessly integrated into a production line. The treating heads are easily mounted, allowing for effortless integration with robots, conveyor systems, and indexing systems.
Key Features:
✔ Adjustable power & treatment levels for various applications
✔ Local or remote-control modes for flexible operation
✔ Color touch display for monitoring all system parameters
✔ Ethernet connection for system control & data monitoring
✔ Intelligent fault monitoring system for enhanced reliability
✔ Compact & economical design
✔ Safe, ozone-free operation
✔ Operates without the need for expensive or hazardous gases
✔ Improves adhesion while maintaining material integrity
✔ Eco-friendly solution—reduces the need for primers and chemical treatments
✔ CE certified for safety, quality, and performance compliance
Please fill out the form below, and let’s get started solving your adhesion challenges!
